Magnetic Drive Pumps

Magnetic Drive Pumps

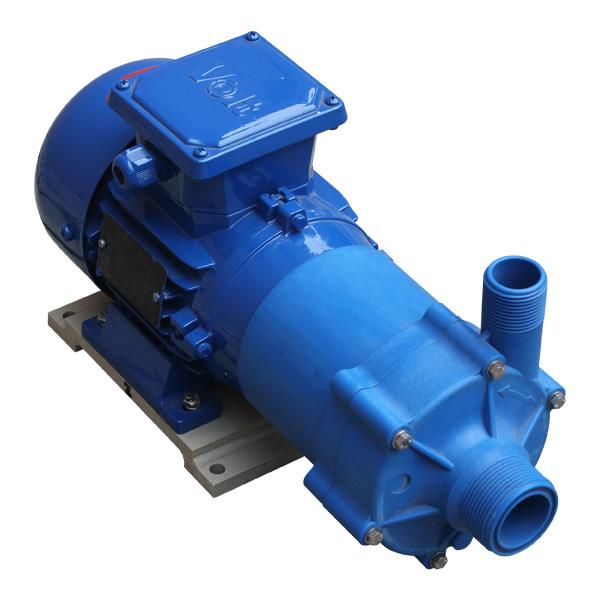

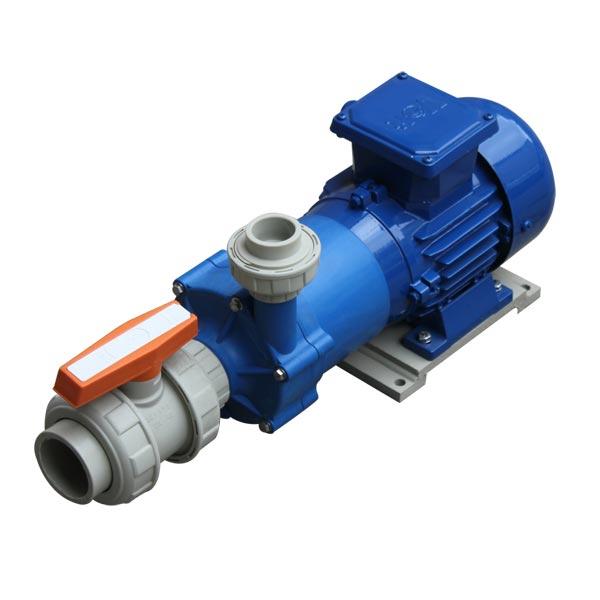

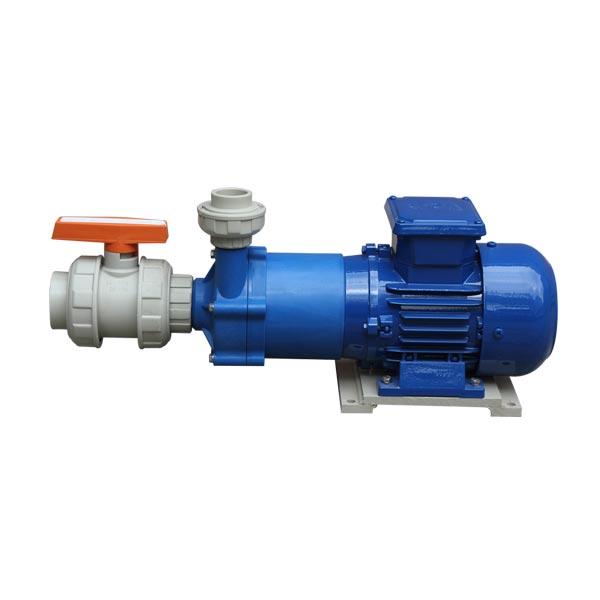

Magnetic Pumps are used in chemical transfer. Covering smaller area and easier instillation are the main advantages of horizontal pumps.  The pump impeller is not physically fixed to the drive shaft, seals are therefore eliminated and this consequently avoids leakages of the liquids drawn by the pump and this makes the pump more resistant to dry working and piping errors. Mainly preferred in the transfer of valuable liquid in continuing and precise process where maintenance cannot be made. Bearing and body materials are specially selected according to usage and the liquid to be transferred. Body material is of European origin and all parts of the pumps are our own design and manufacture. Pumps are designed with highly engineering infrastructure of our company and optimized with the flow and strength analysis so that trouble-free operation of our products for many years is ensured. According to customer needs, design and material can be changed. Service and stock of spare parts makes it possible to suggest fast and high quality solutions to all customer needs.









NO CODE MATERIAL CAPACITY
(m3/h)
MAX. PRESSURE   (Bar) I / O
(mm)
MOTOR
(kW–d/d)


1- AY-5-M PP/ PVDF 3 0.6 32/ 20
0.12/ 3000

2- AY-6-M PP/ PVDF 8 0.9
32/ 25
0.25/ 3000


3- AY-7-M PP/ PVDF 13 1.1
40/ 32
0.55/ 3000


4- AY-8-M PP/ PVDF 20 1.6 50/ 32 1.1/ 3000
5- AY-9-M PP/ PVDF 25 1.9 50/ 32 1.5/ 3000
6- AY-9-2-M PP/ PVDF 32 1.9 63/ 50 2.2/ 3000
7- AY-9-3-M PP/ PVDF 42 2.1 63/ 50 3/ 3000
* Please contact for other capacity and pressure values
